Learn how to programmatically create, update, and delete Option Set values in Microsoft Dataverse using the Web API — perfect for Power Automate flows that sync choice options from external sources at runtime. This guide will help you understand how to manage Choice Columns Dynamically via Dataverse Web API.

What are Choice Columns & Option Sets?
Prerequisites & Auth Setup
InsertOptionValue — Adding a New Choice
UpdateOptionValue — Modifying a Choice Label
DeleteOptionValue — Removing a Choice

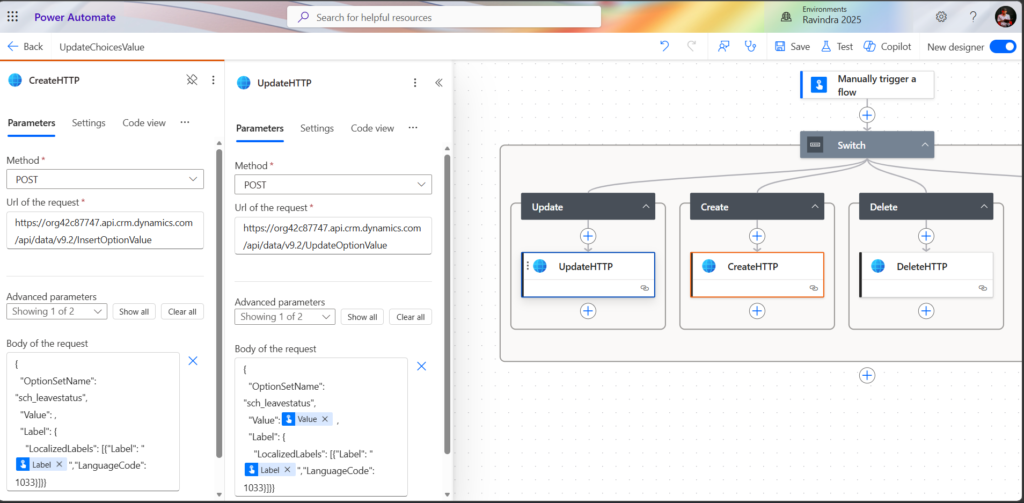

Using in Power Automate Flows
Quick Reference Summary

What are Choice Columns & Option Sets?

In Microsoft Dataverse, a Choice column (formerly known as an OptionSet field) lets users pick a value from a predefined list. Behind the scenes, each option has a numeric integer value and a human-readable label — and the entire list is backed by an Option Set (also called a GlobalOptionSet or PicklistAttributeMetadata).

By default, managing these options requires going through the Power Apps Maker portal. However, there are real-world scenarios — such as syncing business application names from a master list, or dynamically populating project categories from an external system — where you need to add, rename, or remove options programmatically.

The Dataverse Web API exposes three dedicated action endpoints for exactly this purpose:

The InsertOptionValue, UpdateOptionValue, and DeleteOptionValue actions are unbound actions in the Dataverse OData API — meaning they aren’t tied to a specific entity record but operate on the metadata layer directly.

Managing Choice Columns Dynamically via Dataverse Web API

Prerequisites & Auth Setup

Before making these API calls, make sure you have the following in place:

Your Dataverse environment base URL. For this guide we’ll use: https://org42c87747.api.crm.dynamics.com/api/data/v9.2

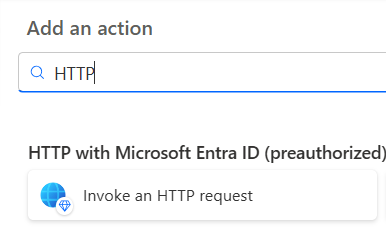

An OAuth 2.0 Bearer token in your request headers. In Power Automate, this is handled automatically by the HTTP with Microsoft Entra ID connector or by using the Dataverse connector’s Perform an unbound action step.

The logical name of the target Option Set — in our example this is sch_leavestatus

Required Headers

// HTTP Headers for all requests

Content-Type: application/json
Authorization: Bearer <your_oauth_token>
OData-MaxVersion: 4.0
OData-Version: 4.0
Accept: application/json

InsertOptionValue — Adding a New Choice

Use InsertOptionValue to add a brand-new option to an existing global Option Set. This is the action you call when a new record is created (e.g., a new Business Application entry) and you want it to appear as a selectable choice in a Choice column.

POSThttps://ppmdevschindlerdev.api.crm4.dynamics.com/api/data/v9.2/InsertOptionValue

// Request Body

{
  "EntityLogicalName": null,
  "AttributeLogicalName": null,
  "OptionSetName": "sch_leavestatus",
  "Label": {
    "LocalizedLabels": [
      {
        "Label": "Your Choice value",
        "LanguageCode": 1033
      }
    ]
  }
}

Successful Response

// HTTP 200 OK — Returns the inserted option value

{
  "@odata.context": "...",
  "value": 123456  // the integer value that was inserted
}

Choice Columns Dynamically via Dataverse Web API

UpdateOptionValue — Modifying a Choice Label

When a Business Application’s name changes, you need to update the corresponding label in the Option Set without changing its underlying integer value. The UpdateOptionValue action handles exactly this.

Post : https://org42c87747.api.crm.dynamics.com/api/data/v9.2/UpdateOptionValue

{
  "OptionSetName": "csppm_businessapplication",
  "Value": @{triggerOutputs()?['body/csppm_id']},
  "Label": {
    "LocalizedLabels": [
      {
        "Label": "@{triggerOutputs()?['body/csppm_businessapplication']}",
        "LanguageCode": 1033
      }
    ]
  }
}

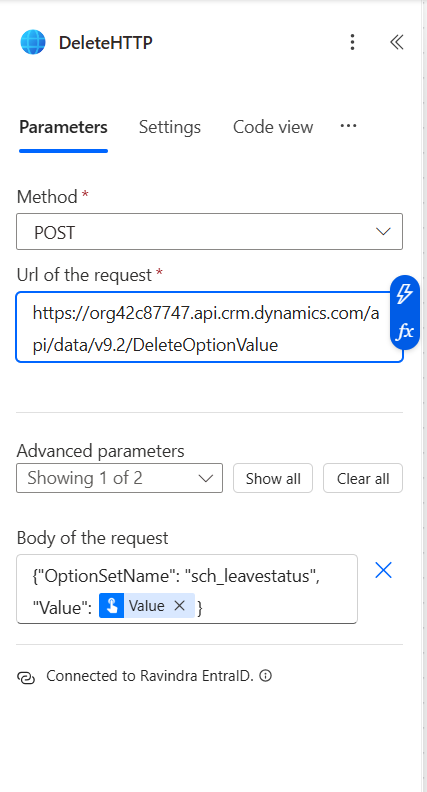

DeleteOptionValue — Removing a Choice

When a Business Application is decommissioned or deleted, you should clean up the corresponding option from the Option Set to prevent stale choices from appearing in dropdowns.

POSThttps://org42c87747.api.crm.dynamics.com/api/data/v9.2/DeleteOptionValue

// Request Body

{
  "OptionSetName": "csppm_businessapplication",
  "Value": Value
}

🚨

Deleting an option is irreversible via the API. Any existing records that currently have this value set in their Choice column will retain the raw integer value, but it will display as a blank or unknown label. Always validate that no active records use the option before deleting.

Note that unlike Insert and Update, the Delete payload is minimal — you only need the OptionSetName and the integer Value to identify which option to remove.
